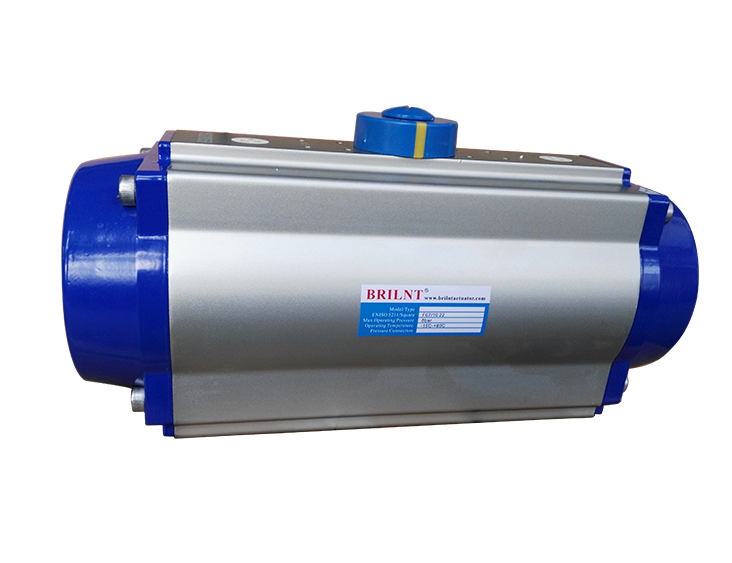

AT Series Pinion-and-rack Type Actuator

Product Specifications：BN050-BN800

Product Features：

On the basis of comprehensively introducing new technologies, new materials and new techniques and innovative ideas, the company produced AT series pneumatic actuators through research, development and design.The following advantages:

1.AT-series pneumatic actuators full conform to the latest international standards:ISO5211,DIN3337, VDINDE- 3845 and NAMUR.

2.Fully enclosed structure and can be installed in any direction.

3.The cylinder is made of die-casting aluminum, the interior has passed through fine grinding and hard anodic oxidation treatment, with long service life, low friction coefficient, rapid movements.

4.All movable surfaces select oil-free lubrication bearing, which has low friction coefficient, low service life, and without noise, and be free of maintenance.

5.The actutor can be mounted directly on a solenoid valve without external pipeline.

6.Mounted with two independent stroke adjusting mechanisms, easy for conducting adjustment of ±5 fully- open or fully- closed positions.

7.Actuators with the same external structure have dual-action type and single-action(spring reset) type for selection, the single-action type has normally-closed type and normally-open type.

8.The single-action and dual-action can be freely interchanged, only need to install or take out the spring.

9.The top export accessories meet the NAMUR standard, with multi-function indication.

10.The hand-operating mechanism is module structure, it is an optional part.

11.The installation and disassembly of the precompression load spring is safe and convenient.

12.The inner chamber of the cylinder uses rolling process, with strong abrasive resistance.

13.Anti environmental corrosion coating, small gas consumption, the improved products are traceable.

14.The piston and the end cover are made of die-casting aluminum alloy, with high rigidity, light weight.

15.Change the material of seals, making them suitable for high temperature or low temperature occasions.

General Data：

The maximum rated air pressure is 8bar, the minimum air pressure is 2.5bar.

Temperature Range：Standard Temperature：-20℃(-4℉) to +80℃(+176℉)

High Temperature：-15℃(+5℉) to +150℃(+302℉)

Low Temperature：-40℃(-104℉) to +80℃(+176℉)

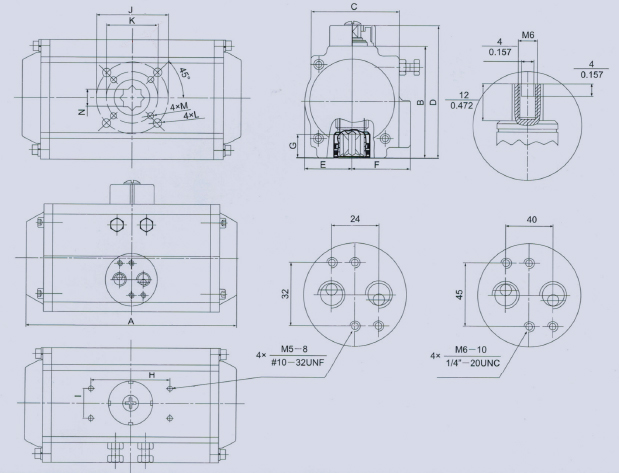

Pneumatic Actuator Dimensions And Connection Dimensions Diagram：

Model	A	B	C	D	E	F	G	H	I	N	J	K	L	M	Air Connection
BN-032	110	45	45	65	22.5	22.5	12	50	25	9	F03		M5*7.5		1/8"
BN-032	4.33	1.77	1.77	2.56	0.89	0.89	0.47	1.97	0.98	0.35	F03		#10-24UNF		1/8"
BN-052	160	72	65	92	30	41.5	14	80	30	11	F05	F03	M6*10	M5*7.5	1/8"0R1/4"(std)
BN-052	6.3	2.83	2.56	3.62	1.18	1.63	0.55	3.15	1.18	0.43	F05	F03	1/4"-20UNC	#10-24UNF	1/8"0R1/4"(std)
BN-063	190	88	72	108	36	47	18	80	30	14	F07	F05	M6*13	M6*10	1/8”0R1/4"(std)
BN-063	7.48	3.46	2.83	4.25	1.42	1.85	0.71	3.15	1.18	0.55	F07	F05	5/16"-18UNC	1/4"-20UNC	1/8”0R1/4"(std)
BN-075	206	100	81	120	42	53	20	80	30	14	F07	F05	M8*13	M6*10	1/8”0R1/4"(std)
BN-075	8.11	3.94	3.19	472	165	2.09	0.79	3.15	1.18	0.55	F07	F05	5/16"-18UNC	1/4"-20UNC	1/8”0R1/4"(std)
BN-083	216	109	92	129	46	57	21	80	30	17	F07	F05	M8*I3	M6*10	1/8"0RI/4"(std)
BN-083	8.5	4.29	3.62	5.08	1.81	2.24	0.83	3.15	1.18	0.67	F07	F05	5/16"-18UNC	1/4"-20UNC	1/8"0RI/4"(std)
BN-092	260	117	98	137	50	58.5	22	80	30	17	F07	F05	M8*13	M6*10	1/8”0R1/4"(std)
BN-092	10.24	4.61	3.86	5.39	1.97	2.3	0.87	3.15	1.18	0.67	F07	F05	5/16"-18UNC	1/4-20UNC	1/8”0R1/4"(std)
BN-105	286	133	110	153	58	62\|	26	80	301	22	F10	F07	MI0*16	M8*13	1/4"
BN-105	11.26	5.24	4.33	6.02	2.28	2.44	1.02	3.15	1.18	0.87	F10	F07	3/8"-16UNC	5/16"-18UNC	1/4"
BN-125	340	155	125.5	175	67.5	75	27.5	80	30	22	F10	F07	M10*I6	M8*13	1/4"
BN-125	13.39	6.1	4.94	6.89	2.66	2.95	1.08	3.15	1.18	0.87	F10	F07	3/8"-16UNC	5/16"-18UNC	1/4"
BN-140	412	173	137.5	1931	75	77	32	80	30	27	F12	F10	M12*20	M10*16	1/4"
BN-140	16.22	6.81	5.41	7.6	2.95	3.03	t.26	3.15	1.18	1.06J	F12	F10	1/2"-12UNC	3/8"-16UNC	1/4"
BN-160	480	198	158	218	87	87	34	80	30	27	F12	F10	Ml2*20	M10*16	1/4"
BN-160	18.9	7.8	6.22	8.58	3.43	3.43	1.34	3.15	1.18	1.06	F12	F10	1/2"-12UNC	3/8"-16UNC	1/4"
BN-190	538	232	189	262	103	103	40	130	30	36	F14		Ml6*24		1/4"
BN-190	21.18	9.13	7.44	10.3	4.06	4.06	1.57	5.12	1.18	1.42	F14		5/8”-11UNC		1/4"
BN-210	568	257	210	287	113	113	40	130	30	36	F14		Ml6*24		1/4"
BN-210	22.36	10.12	8.27	11.3	4.45	4.45	1.57	5.12	1.18	1.42	F14		5/8"-11UMC		1/4"
BN-240	660	291	245	321	130	130	49	130	30	46	F16		M20*26		1/40R3/8"(std)
BN-240	26	11.46	9.65	12.64	5.12	5.12	1.93	5.12	1.18	1.81	F16		3/4"-10UNC		1/40R3/8"(std)
BN-270	740	330	273	360	147	147	49	130	30	46	FI6		M20*26		1/4 0R1/2"(std)
BN-270	29.13	13	10.75	14.17	5.79	5.79	1.93	5.12	1.18	1.18	FI6		3/4"-10UNC		1/4 0R1/2"(std)
BN-300	798	354	290	384	162	173	49	130	30	46	F16		M20*26		1/4"0R1/2”(std)
BN-300	31.42	13.94	11.42	15.12	6.38	6.81	1.93	5.12	1.18	1.18	F16		3/4"-10UNC		1/4"0R1/2”(std)

BN Double Acting Actuator Output Torque：

Model	Input air pressure（bar)
	3.0	4.0	5.0	6.0	7.0	8.0
	Air output torque（Nm)
BN-032	4.6	6.1	7.6	9.2	10.7	12.2
BN-052	12.0	16.0	20.0	24.0	28.0	32.0
BN-063	21.7	28.9	36.1	43.3	50.6	57.8
BN-075	35.0	46.6	58.3	69.9	81.6	93.2
BN-083	42.8	57.0	71.3	85.5	99.8	114.0
BN-092	67.6	90.1	112.6	135.2	157.7	180.2
BN-105	97.7	130.3	162.9	195.5	228.0	260.6
BN-125	173.3	231.0	288.8	346.5	404.3	462.0
BN-140	260.7	347.6	434.5	521.4	608.3	695.2
BN-160	397.2	529.6	662.0	794.4	926.8	1059.2
BN-190	640.2	853.6	1067.0	1280.4	1493.8	1707.2
BN-210	798.0	1064.0	1330.0	1596.0	1862.0	2128.0
BN-240	1154.3	1539.0	1923.8	2308.5	2693.3	3078.0
BN-270	1755.0	2340.0	2924.0	3510.0	4095.0	4680.0
BN-300	2291.4	3055.2	3819.0	4582.8	5346.6	6110.4

BN Single Acting Actuator Output Torque：

Model	Spring Qty.	Spring output torque（Nm)		Input air pressure（bar）
				3.0		4.0		5.0		6.0		7.0
				Air output torque（Nm）
		0°	90°	0°	90°	0°	90°	0°	90°	0°	90°	0°	90°
BN-052	5	4.0	6.2	8.1	5.8	12.1	9.8
	6	4.7	7.4	7.3	4.6	11.3	8.6
	7	5.5	8.7	6.5	3.3	10.5	7.3	14.5	11.3
	8	6.3	9.9			9.7	6-1	13.7	10.1
	9	7.1	11.2			8.9	4.8	12.9	8.8	16.9	12.8
	10	7-9	12.4			8.1	3.6	12.1	7.6	16.1	11.6	20.1	15.6
	11	8.7	13.6			7.3	2.4	11.3	6.4	15.3	10.4	19.3	14.4
	12	9.5	14.9					10.5	5.1	14.5	9.1	18.5	13.1
BN-063	5	6.8	10.4	14.9	11.3	22.1	18.5
	6	8.2	12.5	13.5	9.2	20.7	16.4
	7	9.6	14.6	12.1	7.1	19.3	14.3	26.5	21.5
	8	10.9	16.7			18.0	12.2	25.2	19.4
	9	12.3	18.9			16.6	10.0	23.8	17.2	31.1	24.5
	10	13.7	20.9			15.2	8.0	22.4	15.2	29.7	22.5	36.9	29.7
	11	15.0	22.9					21.1	13.2	28.4	20.5	35.6	27.7
	12	16.4	25.0					19.7	11.1	27.0	18.4	34.2	25.6
BN-075	5	10.5	16.3	24.5	18.8	36.1	30.4
	6	12.7	19.5	22.3	15.5	33.9	27.1
	7	14.8	22.8	20.2	12.3	31.8	23.9
	8	16.9	26.0			29.7	20.6	41.4	32.3
	9	19.0	29.3			27.6	17.4	39.3	29.1	50.9	40.7
	10	21.1	32.5			25.5	14.1	37.2	25.8	48.8	37.4	60.5	49.1
	11	23.2	35.8			23.4	10.9	35.1	22.6	46.7	34.2	58.4	45.9
	12	25.3	39.0					33.0	19.3	44.6	30.9	56.3	42.6
BN-083	5	14.8	20.6	28.1	22.3	42.3	36.5
	6	17.7	24.7	25.1	18.1	39.3	32.3
	7	20.7	28.8			36.4	28.3	50.7	42.5
	8	23.6	32.9			33.4	24.1	47.7	38.4
	9	26.6	37.0			30.5	20.0	44.8	34.3	59.0	48.5
	10	29.5	41.1			27.5	15.9	41.8	30.2	56.0	44.4	70.3	58.7
	11	32.5	45.2					38.9	26.1	53.1	40.3	67.4	54.6
	12	35.4	49.3					35.9			36.2	64.4	50.5
BN-092	5	23.0	33.0	44.6	34.7	67.1	57.2
	6	27.6	39.5	40.0	28.1	62.5	50.6
	7	32.2	46.1			57.9	44.0	80.4	66.5
	8	36.8	52.7			53.3	37.4	75.8	59.9
	9	41.4	59.3			48.7	30.8	71.2	53.3	93.8	75.9
	10	46.0	65.9			44.1	242	66.6	46.7	89.2	69.3	111.7	91.8
	11	50.6	72.5					62.0	40.1	84.6	62.7	107.1	85.2
	12	55.2	79.1					57.4	33.5	80.0	56.1	102.5	78.6
BN-105	5	31.8	49.3	66.0	48.4	98.6	81.0
	6	38.1	59.2	59.6	38.5	92.2	71.1
	7	44.5	69.0			85.9	61.3	118.5	93.9
	8	50.8	78.9			79.5	51.4	112.1	84.0
	9	57.2	88.7			73.2	416	105.8	74.2	138.4	106.8
	10	63.5	98.6			66.8	31.7	99.4	64.3	132.0	96.9	164.5	129.4
	11	69.9	108.5					93.1	54.4	125.7	87.0	158.2	119.5
	12	76.2	118.3					86.7	44.6	119.3	77.2	151.8	109.7
BN- 125	5	52.5	86.3	121	87	179	145
	6	63.0	103.5	110	70	168	128
	7	73.5	120.8			158	110	215	168
	8	84.0	138.0			147	93	205	151
	9	94.5	155.3			137	76	194	134	252	191
	10	105.0	172.5			126	59	184	116	242	174	299	232
	jJ1	115.5	189.8					173	99	231	157	289	214
	12	126.0	207.0					163	82	221	140	278	197
BN- 140	5	86.0	129.0	174	131	261	218
	6	103.2	154.8	157	105	244	192
	7	120.4	180.6			227	166	314	253
	8	137.6	206.4			209	141	296	228
	9	154.8	232.2			192	115	279	202	366	289		-
	10	172.0	258.0			175	89	262	176	349	263	436	350
	11	'189.2	283.8					245	150	332	237	585	324
	12	206.4	309.6					228	124	315	211	402	298
BN- 160	5	139.5	192.5	258	205	390	337
	6	167.4	231.0	230	166	362	298
	7	195.3	269.5			334	260	467	393
	8	223.2	308.0			306	221	439	354
	9	251.1	346.5			278	183	411	316	543	448
	10	279.0	385.0			250	144	383	277	515	409	647	541
	11	306.9	423.5					355	239	487	371	619	503
	12	334.8	462.0					327	200	459	332	591	464
BN- 190	5	190	320	451	320	664	533
	6	227	384	413	256	626	469		.
	7	265	448			588	405	802	619
	8	303	512			550	341	764	555
	9	341	576			512	277	726	491	939	704
	10	379	640			474	213	688	427	901	640	1114	853
	11	417	704					650	363	863	576	1076	789
	12	455	768					612	299	825	512	1038	725
BN- 210	5	261	440	619	439	912	732
	6	313	528	566	351	859	644
	7	365	616			807	556	1101	850
	8	417	704			755	468	1049	762
	9	469	792			703	380	997	674	1290	967
	10	521	880			651	292	945	586	1238	879	1531	1172
	11	573	968					893	498	1186	791	1479	1084
	12	625	1056					841	410	1134	703	1427	996
BN- 240	5	389	685	990	694	1449	1153
	6	467	822	912	557	1371	1016
	7	545	959			1293	879	1753	1339
	8	622	1096			1216	742	1676	1202
	9	700	1233			1138	605	1598	1065	2057	1524
	10	778	1370			1060	468	1520	928	1979	1387	2439	1847
	11	856	1507					1442	791	1901	1250	2361	1710
	12	934	1644					1364	654	1823	1113	2283	1573
BN- 270	5	530	960	1409	979	2055	1625
	6	636	1152	1303	787	1949	1433
	7	742	1344			1843	1241	2488	1886
	8	848	1536			1737	1049	2382	1694
	9	954	1728			1631	857	2276	1502	2922	2148
	10	1060	1920			1525	665	2170	1310	2816	1956	3463	2603
	11	1166	2112					2064	1118	2710	1764	3357	2411
	12	1272	2304					1985	926	26.4	1572	3251	2291
